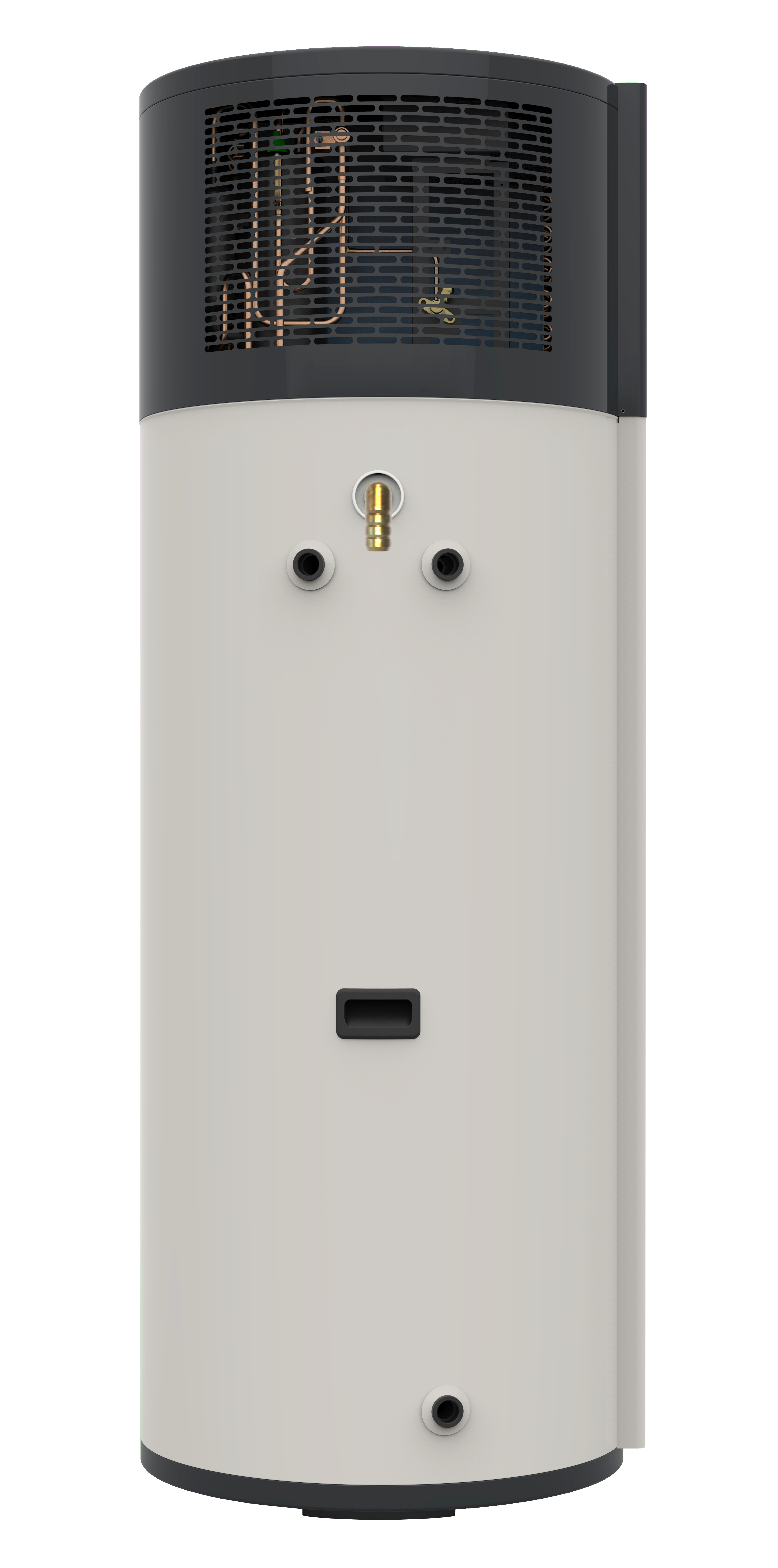

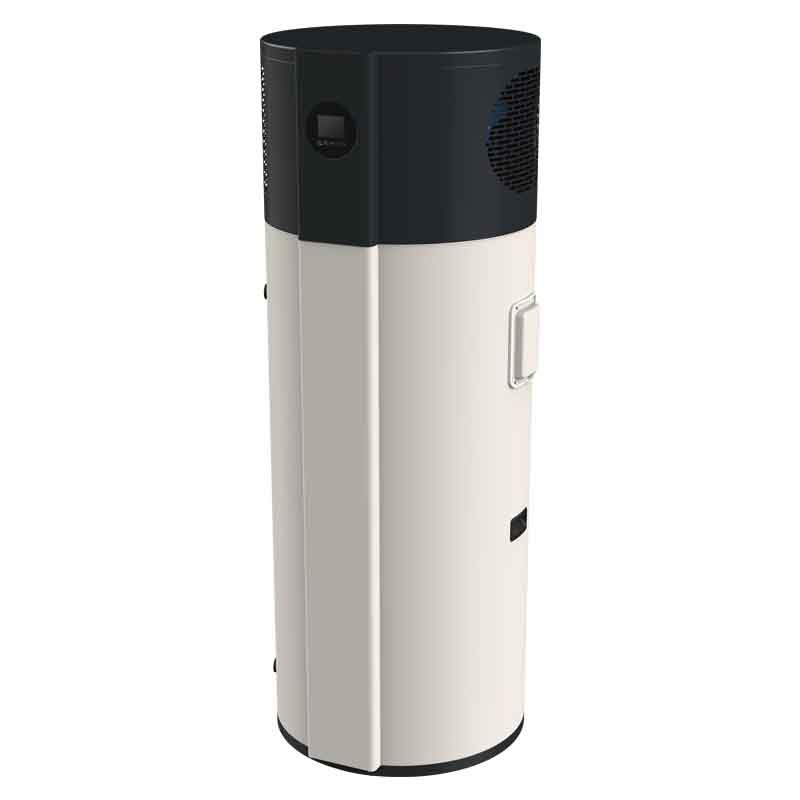

50Gal All in one heat pump R513
R513 refrigerant all in one heat pump
| Model No. | 50G |
| Power supply | 208V~240V/60HZ |
| Rated Input Power(Compressor) | 323W |
| Rated Current(Compressor) | 1.5A |
| Heating Capacity(Compressor) | 1400W |
| COP | 4.33 |
| UEF | 3.95 |
| FHR | 67.44 Gal. |
| Upper Heating Element | 4800W |
| Lower Heating Element | 4800W |
| Max Input Power (Compressor) | 660W |
| Max Current (Compressor) | 3.4A |
| Max Input Power (Com.&HE) | 5460W |
| Max Current (Com.&HE) | 27.8A |
| Refrigerant | R513A (600g) |
| Compressor | HIGHLY/Rotary |
| Fan Motor | Axial |
| Expansion valve | With EEV |
| Water Tank Capacity | 182 liters (actual) |
| Heat Exchanger(Tank) | Microchannel |
| Inner Tank Material | Enamel |
| Inner Tank Diameter | φ470mm |
| Water Inlet/Outlet Pipe | 3/4" FPT |
| Rated Water Tank Pressure | 102PSI(700kPa) |
| Water Tank Max Working Pressure | 150PSI(1034kPa) |
| Outer Casing | Galvanized steel with coating |
| Ventilation | Air in from top, out from side |
| Water Temp. Range | Default 120ºF (49ºC), Max. 150ºF ( 65ºC ) |
| Running mode:ECO, HYB, ELE, Vacation | |
| Working range with resistance | -15℃-43℃ |
| Working range without resistance | -1℃-43℃ |
| Anti-corrosion for water tank | Magnesium anode |
| Anti Legionella | Water heated up to 65℃ |
| Unpacked Dimension | φ560 X 1557mm |
| Noise | 48dBA |
