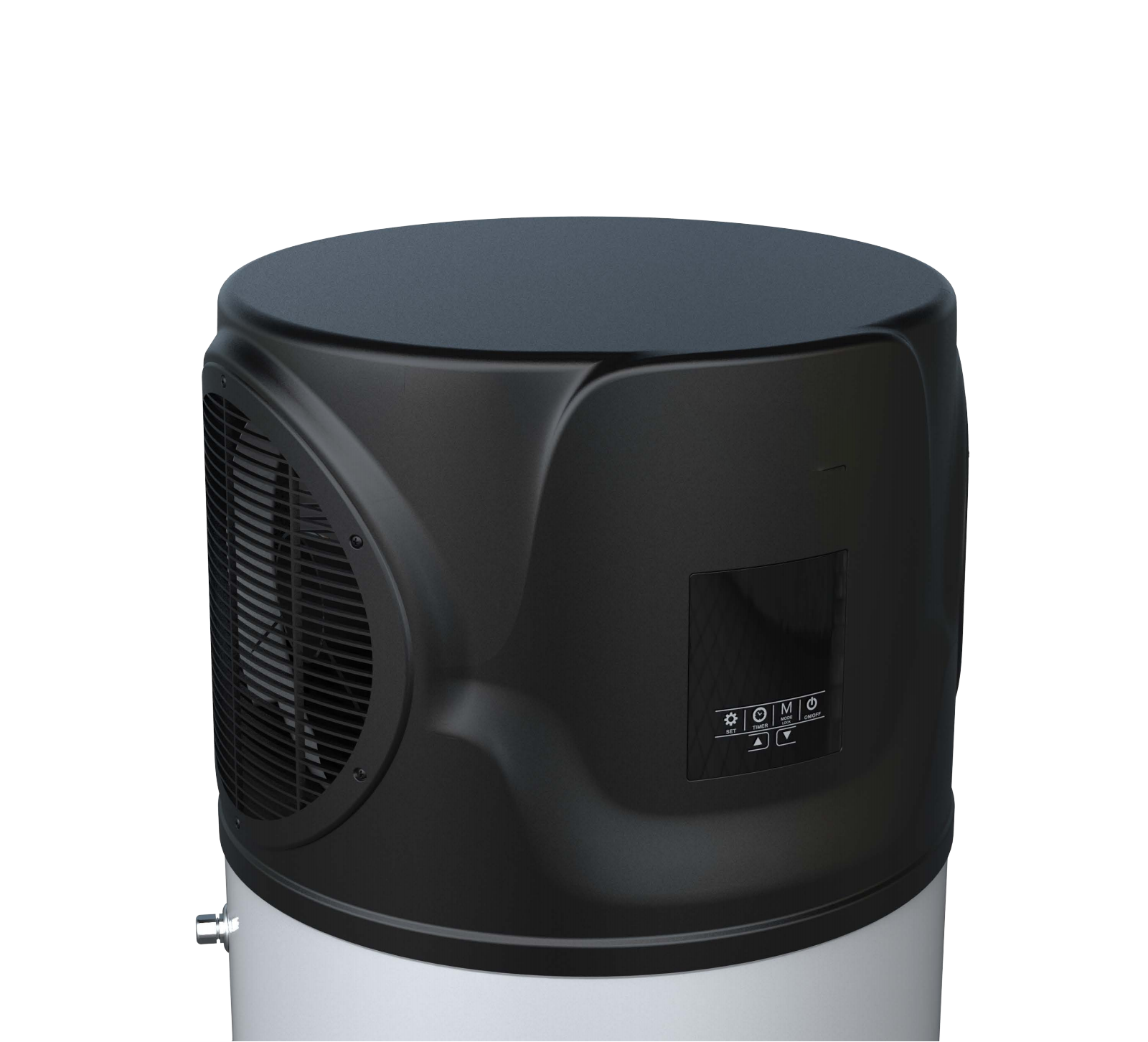

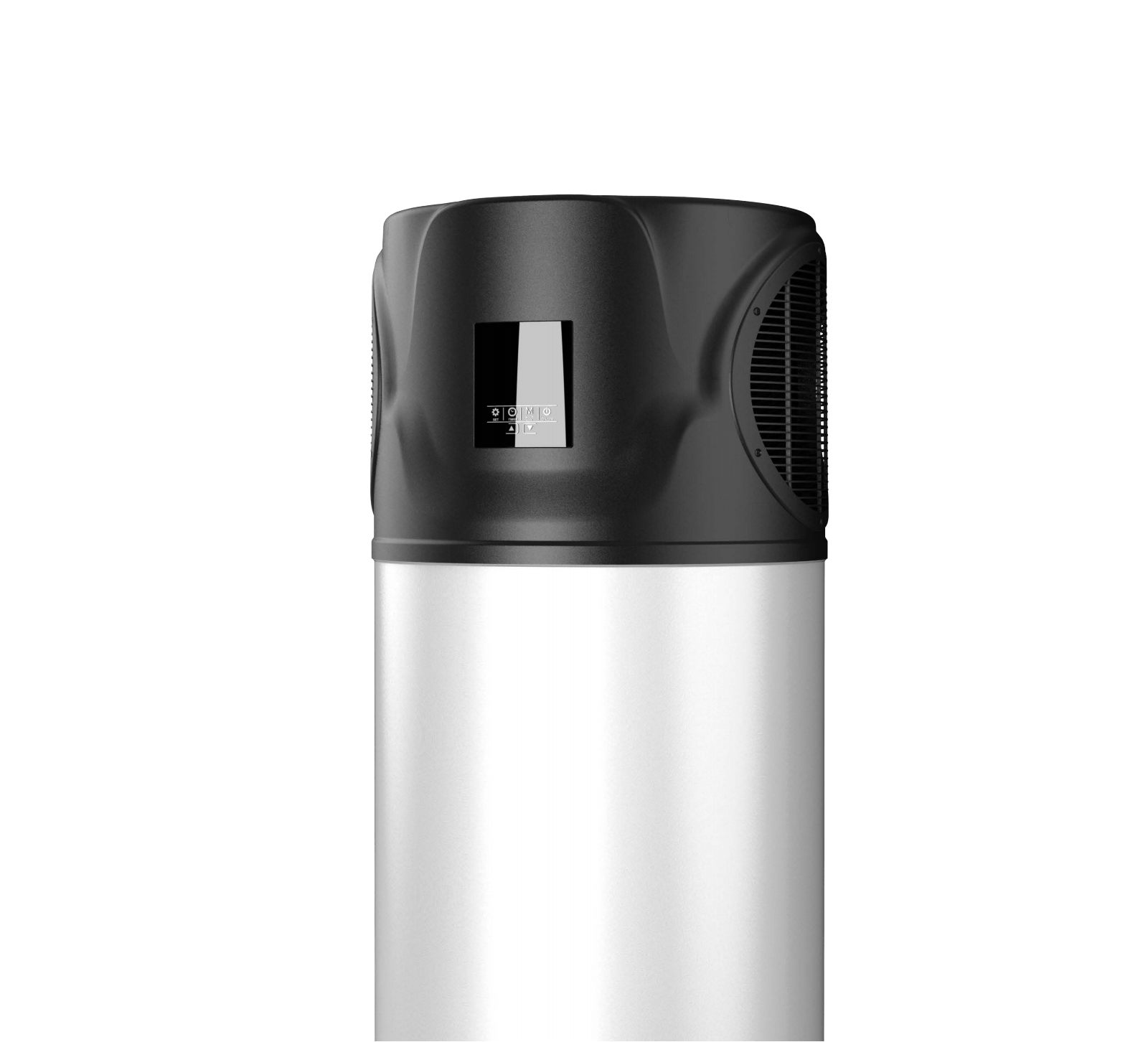

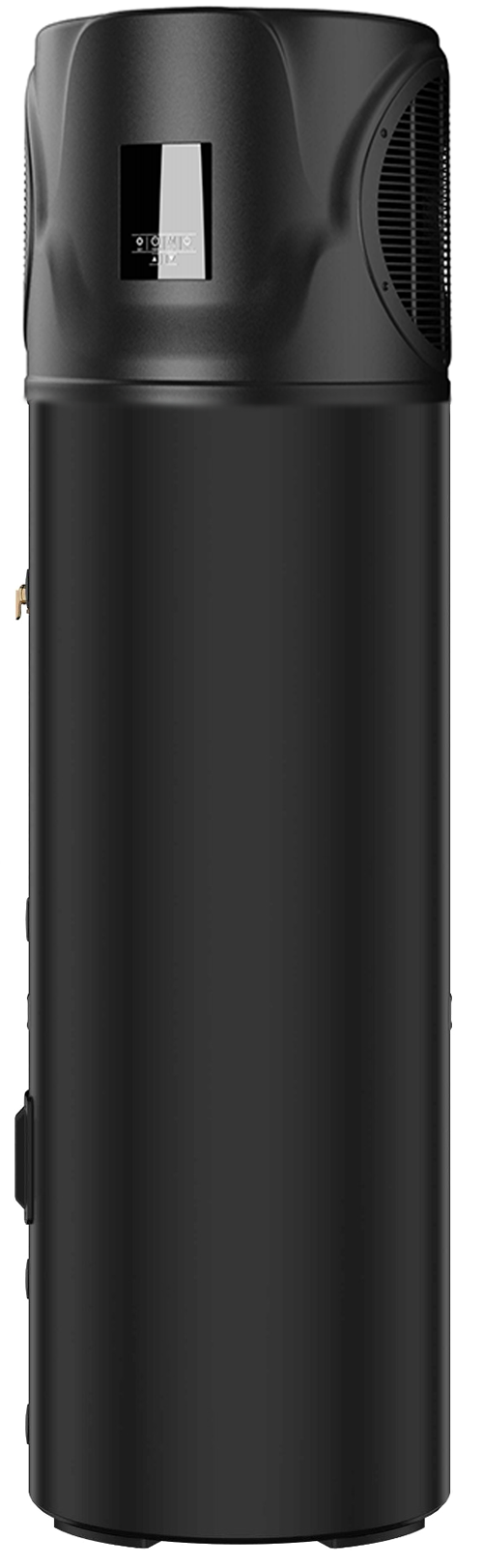

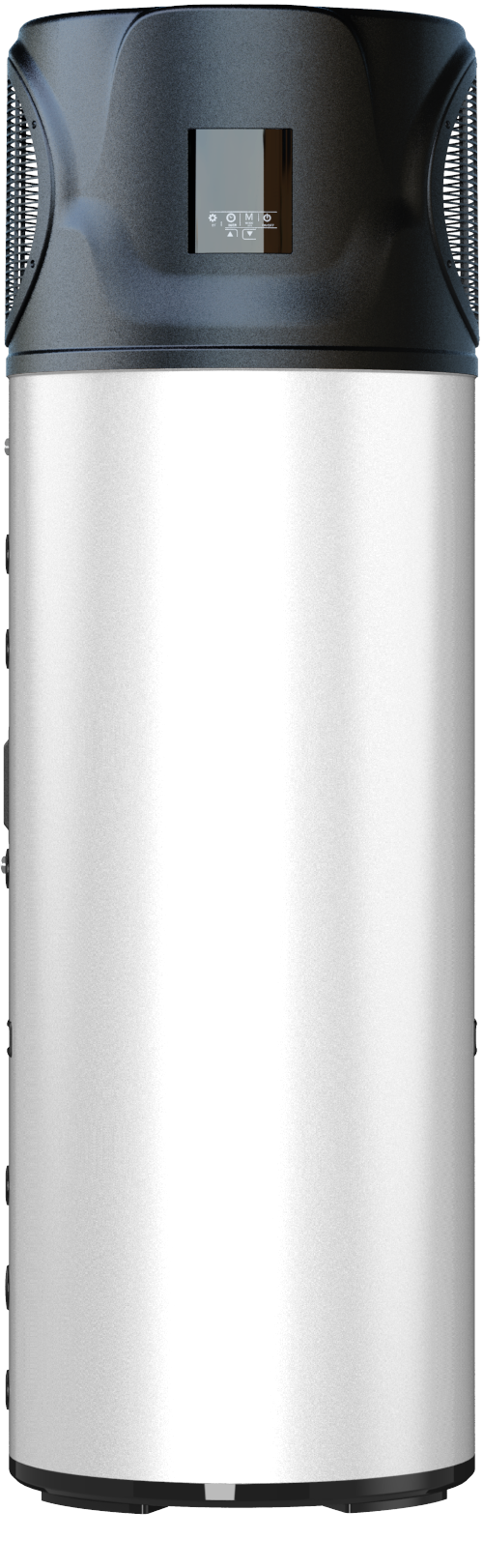

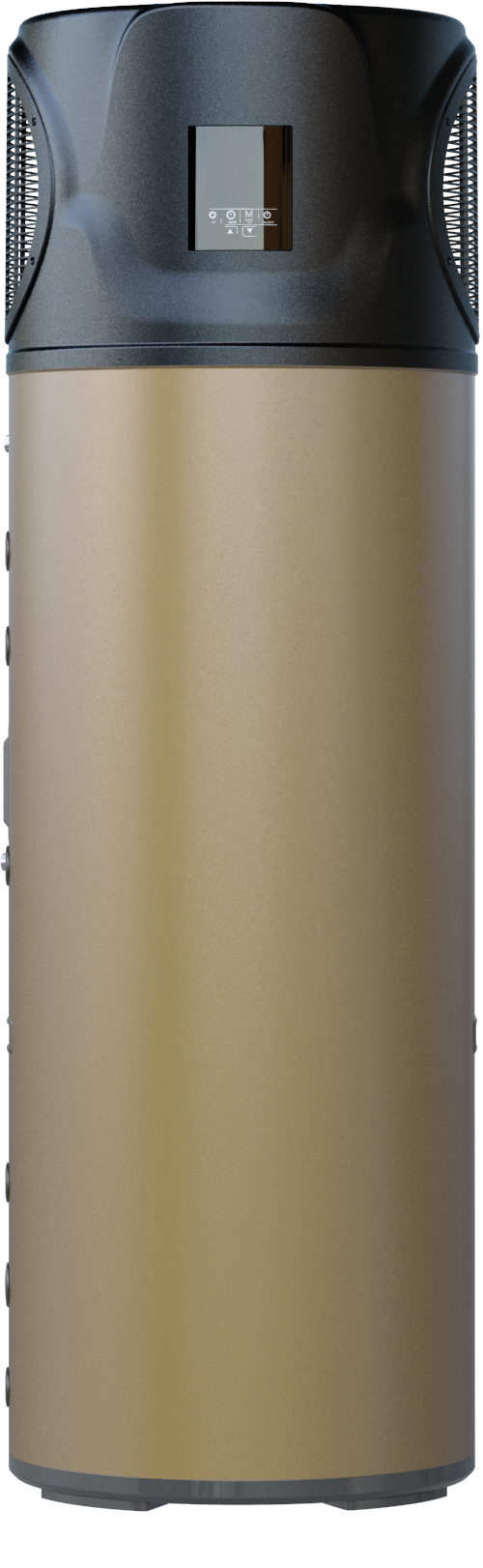

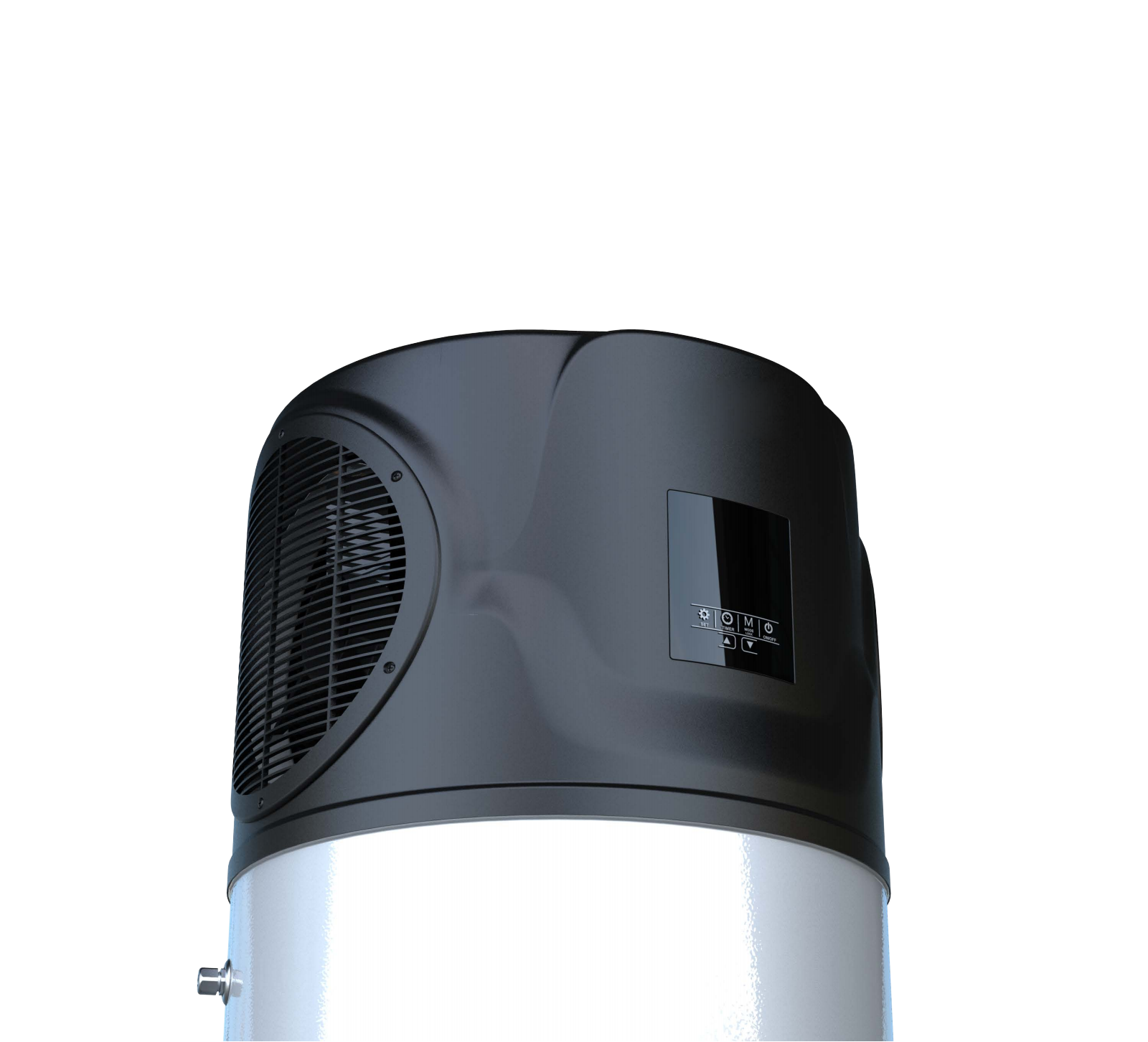

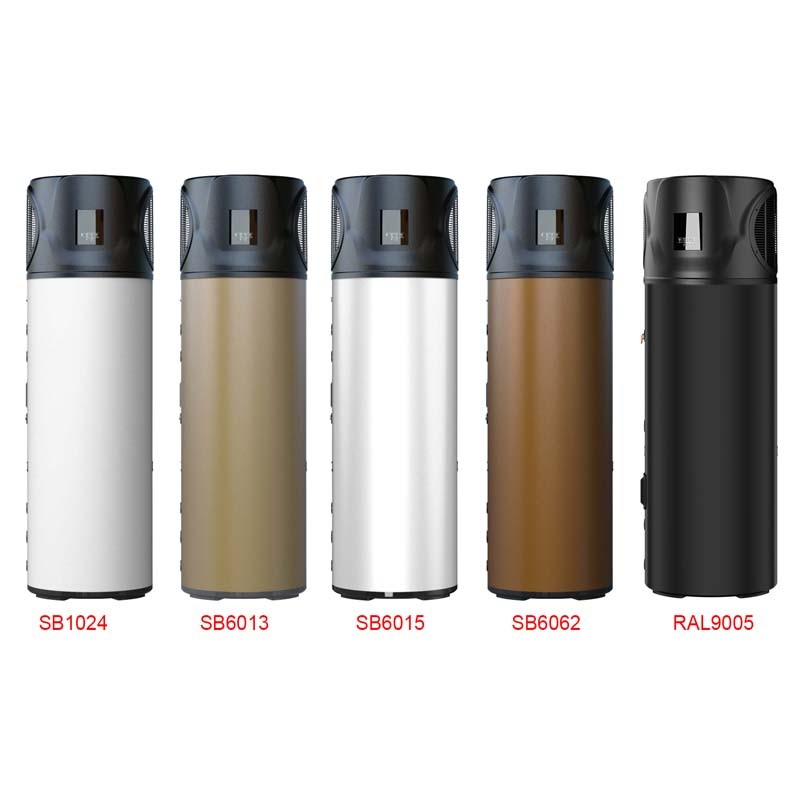

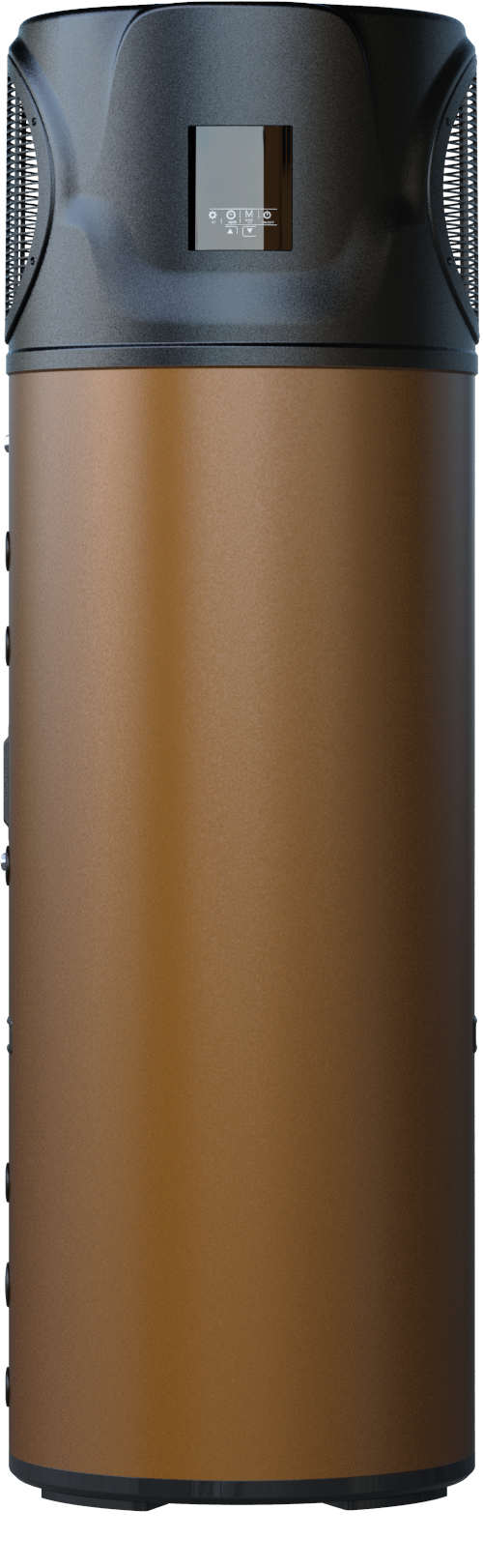

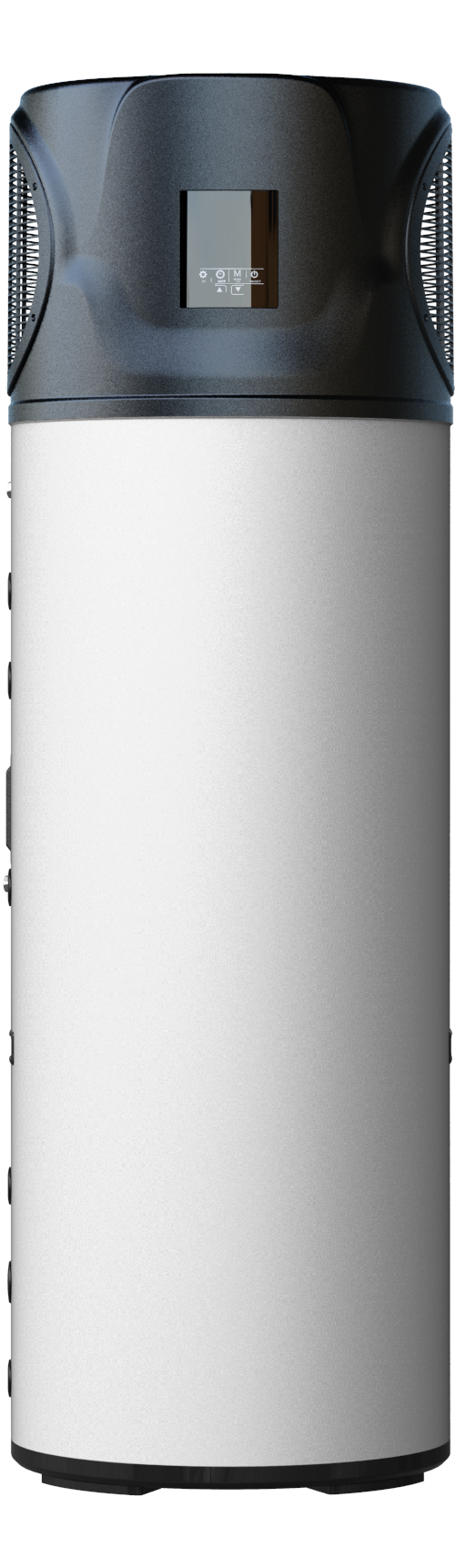

Inverter EHP R290 All-in-one heat pump Intergrated water heater

Model			270	320
Power supply			220-240V~, 1Ph, 50/60Hz	220-240V~, 1Ph, 50/60Hz
Nominal tank volume		L	270	320
Heating capacity (Heat pump only)		kW	2.50	2.50
EBH (Electric backup heater)		kW	1.5	1.5
Average Input (Heat pump only)		kW	0.45	0.45
COP @ A19℃/15℃，W15℃-55℃			5.50	5.54
STC (Zone 1 / 2 / 3 / 4 / 5)			25 / 25 / 30 / 32 / 31	25 / 25 / 30 / 32 / 31
Current (Heat pump only)		A	2.01	2.01
Max. input		W	2,230	2,230
Max. current		A	9.80	9.80
Air flow		m3/h	650	650
Max.leaving water temperature (Heat pump only)		°C	65	65
Hot water yield		L/h	52	52
STC (Zone 1 / 2 / 3 / 4 / 5) @10ys			28 / 28 / 33 / 36 / 35	28 / 28 / 33 / 36 / 35
Available			About 2-3 peoples	About 2-4 peoples
Working ambient temperature (Heat pump only)			-10°C to 43°C	-10°C to 43°C
Sound pressure level		dB(A)	49	49
Max. operating water pressure		MPa	0.85	0.85
Water resistance			IPx4	IPx4
Refrigerant type / Factory charged			R290 / 0.4kg	R290 / 0.4kg
Throttling type			Electric expansion valve	Electric expansion valve
Compressor
Model			11.16CC	11.16CC
Type ×Quantity			DC Rotary ×1	DC Rotary ×1
Brand			Panasonic	Panasonic
Evaporator
Fin material			Hydrophilic aluminum	Hydrophilic aluminum
Tube	Material		Inner groove copper tube	Inner groove copper tube
	Outside diameter	mm	Φ7	Φ7
Fan motor
Motor type			BLDC	BLDC
Speed		rmp	600-1050	600-1050
Fan type ×Quantity			Axial ×1	Axial ×1
Tank
Inner tank material			Enamel	Enamel
Rated inner tank pressure		MPa	0.85	0.85
Insulation			Polyurethane	Polyurethane
Outer tank material			Galvanized steel	Galvanized steel
Condenser coil			Microchannel wrap-around to tank	Microchannel wrap-around to tank
Corrosion proof			Magnesium anode	Magnesium anode
Dimensions
Inlet water pipe connection		mm	G3/4''	G3/4''
Outlet water pipe connection		mm	G3/4''	G3/4''
Condensing water connection		mm	1/2'', internal thread	1/2'', internal thread
Unit dimension (ΦD×H)		mm	Φ640×1960	Φ640×2,210
Packing dimension (L×W×H)		mm	750×745×2,210	750×745×2,210
Weight
Net / Gross weight		kg	109 / -	122 / -
